Cold rolled gr2 titanium foil and strip in coil Contact Supplier

To: JACK Sales Managersales@newfutureti.com

Subject
Email Address - Required
Contact Number
Message
By requesting a quote, your information will be shared with New Future Titanium according to Google's Privacy Policy so that the merchant can follow up on your request.
Overview Quick Details Application: Industrial Width: 6-500mm Length: 200mm per customer request Grade: Gr2 Ti (Min): 99.2 Place of Origin: Shaanxi, China Product Name: Cold rolled gr2 titanium foil and strip standard: ASTM B265 surface: acid washing burnished rolled supply condition: R M Y material testing certificate: EN10204.3.1 inventory: available ship quickly Technique: Cold Rolled Density: 4.51g/cm3

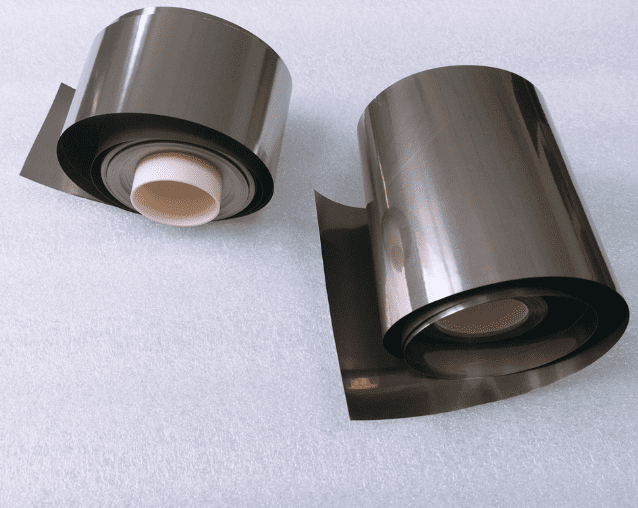

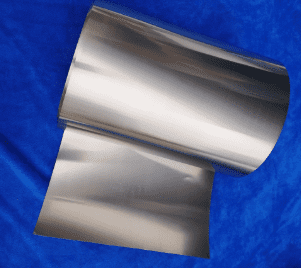

Titanium Foil - Product Overview

We offer cold-rolled titanium foil in Gr1, Gr2 and Gr5 to ASTM B265, with thicknesses from 0.01 mm to 0.5 mm and widths up to 600 mm. Foils are bright annealed for a clean, uniform surface and precise thickness tolerance.

Key Features

Tight thickness tolerance and excellent surface quality; corrosion resistant and biocompatible; easy to stamp, form and deep draw; stable mechanical properties in coil form.

Typical Applications

Speaker diaphragms and acoustic components; medical and dental products; precision stamped parts, gaskets and seals; battery and electronics components; aerospace honeycomb core and scientific research.

Supply Capability

Standard foils are in stock for shipment within one day. Custom thicknesses and slitting to width are available, with full mill test certification supplied.

Product Details

Product name
Titanium foil/Titanium plate/Titanium sheet/Titanium strip/Titanium coil
Standard
ASTM B265 / ASME SB265/ AMS 4911 /ASTM F67 / ASTM F136/ISO 5832-2 / ISO 5832-3
Titanium Type
Commercially Pure(CP) / Titanium alloy
Grade

Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333

BT1-00 BT1-0 BT1-2

Thickness
0.025-75mm
Length
Cut according to the request
Technique
Hot rolled or cold rolled
Surface
Acid surface or polishing, sand blasted surface
Application
Aviation,Navigation,Petrochemical,Industrial,Qquipment manufacturing,Medical,Automobile as well sports

1.Chemical requirements
GradeN(≤)C(≤)H(≤)Fe(≤)O(≤)Al(≤)V(≤)Pd(≤)Mo(≤)Ni(≤)Ti
GR10.030.080.0150.20.18/////bal
GR20.030.080.0150.30.25/////bal
GR30.050.080.0150.30.35/////bal
GR40.050.080.0150.20.4/////bal
GR50.050.080.0150.40.25.5~6.753.5~4.5///bal
GR70.030.080.0150.30.25//0.12~0.25//bal
GR90.030.080.0150.250.152.5~3.52.0~3.0///bal
GR120.030.080.0150.30.25///0.2~0.40.6~0.9bal
GR230.050.080.0120.250.135.5~6.53.5~4.5


bal

2.Tensile requirements
GradeTensil strength(≥)Yeild strength(≥))Elongation(≥)%)
ksiMpaksiMpa
GR1352402013824
GR2503454027520
GR3654505538018
GR4805507048315
GR513089512082810
GR7503454027520
GR9906207048315
GR12704832034518
GR2312082811076010


Specifications

package
Packaging & Delivery Packaging Details 1. Wooden case 2. Available upon the client's request.
Baoji NewFuture Titanium Co., Ltd. New Future Metal supplies titanium and titanium alloy materials, pipes, rods, and wires in common sizes. With a large inventory in all standard sizes, and orders can be shipped within one day. We also provide services for materials such as Nickel and nickel alloy|Zirconium |Tantalum |Niobium And ancillary metal processing services, metal electrodes, equipment, special-shaped materials, etc. can be customized according to needs More about the company →
Location
Baoji, China
Factory Size
500-1,000 m²
Number of Employees
50-100
Year Established
2010
Business Type
Manufacturer, Marketing
