The Advantage Of Titanium Bar 1.Light weight -[Specific gravity](60% of specific gravity of steel and about 1.7 times that of aluminum) 2.Low thermal expansion-[Hermal expansion coefficent](ne-half that of 18-8 stainless steel and one-third that of aluminum) 3.Low hear conductivity-[Heat conductivity](nearly the same as 18-8stainless steel) 4.Low electric conductivity-[Electric conductivity](about 3% of copper) 5.High flexibility-Longitudinal elastic modulus](one-half of iron or stainless steel and the same as copper) 6.Non-magnetism -[Magnetic permeability](non-magnetic material; magnetic permeability = 1.0001)

Titanium Bar - Product Overview

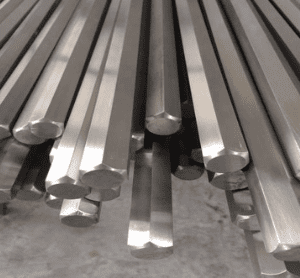

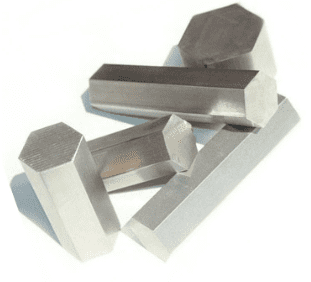

Our titanium bars are manufactured from high-quality titanium and titanium alloys (Gr1, Gr2, Gr5, Gr7, Gr12) in full compliance with ASTM B348, AMS 4928 and ISO 5832 standards. Available in round, square and hexagonal profiles with diameters from 6 mm to 300 mm, supplied in annealed, hot-rolled or forged condition with polished or pickled surfaces.

Key Features

Outstanding strength-to-weight ratio, excellent corrosion resistance in seawater and chemical media, good biocompatibility, and reliable performance from -250 to 600 degrees Celsius.

Typical Applications

Aerospace structural components and fasteners; medical implants and surgical instruments; chemical processing equipment, heat exchangers and reaction vessels; marine engineering and desalination plants; power generation, automotive and high-end sports equipment.

Supply Capability

Standard sizes are in stock for shipment within one day. Custom diameters, lengths and tolerances can be produced to your drawings, with EN 10204 3.1 mill test certificates provided for every batch.
