Our titanium plates and sheets are manufactured to ASTM B265, AMS 4911 and ASME SB265 standards in commercially pure grades (Gr1 to Gr4) and alloyed grades including Gr5 (Ti-6Al-4V), Gr7 and Gr12. Available in thicknesses from 0.5 mm to 100 mm, widths up to 2,000 mm and lengths up to 6,000 mm, supplied in hot-rolled, cold-rolled or annealed condition.
About 45 percent lighter than steel at comparable strength; outstanding resistance to seawater, chlorides and oxidizing acids; excellent fatigue strength and fracture toughness; good formability in the softer commercially pure grades.
Aerospace skins and structural components; chemical and petrochemical pressure vessels, tanks and heat exchanger plates; marine and offshore equipment; medical implants and surgical instruments; power plant condensers, desalination plants, chlor-alkali cells and architectural cladding.
Standard sizes are in stock for shipment within one day. We offer cut-to-size, waterjet and laser cutting, surface grinding and pickling, with EN 10204 3.1 mill test certificates supplied for every batch.

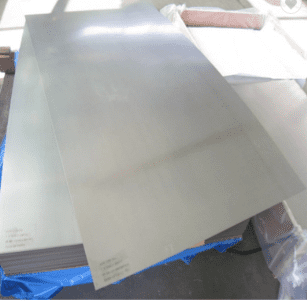

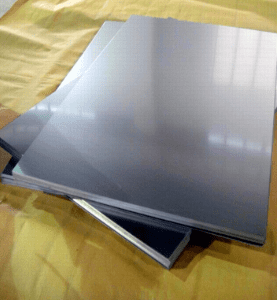

| Name | Titanium sheet & plate | ||||
| Size | Thickness: 0.3~60mm Width: 400~3600mm Length: 100~5600mm | ||||
| Grade | Gr 1, Gr 2, Gr 3, Gr 4, Gr5, Gr 7, Gr 9, Gr11, Gr 12, Gr16, Gr23 etc. | ||||
| Standard | ASTM B265, ASTM F67, ASTM F136 etc. | ||||
Mechanical Properties | Annealed status in roomtemperature (20°C), Tensile Strength: σb≥345Mpa(50Ksi), Permanent Elongation stress: σ0.2≥276Mpa(40Ksi), Elongation: δ4D≥20%, Reduction of Area: Ψ≥30% | ||||
| State | Thermal processing condition (R) Cold-work condition (Y) Annealed (M) | ||||
| Chemical Composition | |||||
| Ti | Fe | C | N | H | O |
| Bal | ≤0.30 | ≤0.08 | ≤0.03 | ≤0.01 | ≤0.25 |
| Application | 1). Chemical industry; 2). Petrochemical industry; 3). Machining field, Automobile field,etc; 4). Desalination of sea water; 5). Textile printing and dyeing; 6). Mobile phone component field etc. | ||||
