Overview Quick Details Place of Origin: Shaanxi, China Application: Industry, Chemical, Medical, Aerospace Width: 200 - 2000 mm Length: 800-6000mm Technique: Cold Rolled Grade: GR5, GR1, Gr2,Gr2,Gr5,Gr7,Gr9,Gr23 Ti (Min): 99.8% Model Number: Titanium Plate Surface Treatment: Pickled, Sandblast, Polished Rolling Technology: Cold & Hot Standard: GB/T3621-94/ASTM B265 Product Name: Titanium Alloy Sheet Material: GR1/GR2/GR3/GR5/GR7/GR9/GR12 Surface: Polished Name: Titanium Palte Key word: Titanium Prices Type: ASTM B265 Titanium Plate

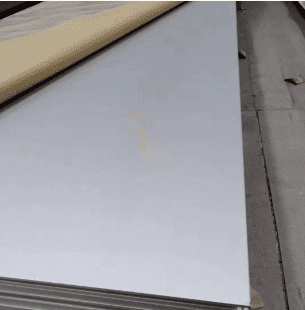

Titanium Plate and Sheet - Product Overview

Our titanium plates and sheets are manufactured to ASTM B265, AMS 4911 and ASME SB265 standards in commercially pure grades (Gr1 to Gr4) and alloyed grades including Gr5 (Ti-6Al-4V), Gr7 and Gr12. Available in thicknesses from 0.5 mm to 100 mm, widths up to 2,000 mm and lengths up to 6,000 mm, supplied in hot-rolled, cold-rolled or annealed condition.

Key Features

About 45 percent lighter than steel at comparable strength; outstanding resistance to seawater, chlorides and oxidizing acids; excellent fatigue strength and fracture toughness; good formability in the softer commercially pure grades.

Typical Applications

Aerospace skins and structural components; chemical and petrochemical pressure vessels, tanks and heat exchanger plates; marine and offshore equipment; medical implants and surgical instruments; power plant condensers, desalination plants, chlor-alkali cells and architectural cladding.

Supply Capability

Standard sizes are in stock for shipment within one day. We offer cut-to-size, waterjet and laser cutting, surface grinding and pickling, with EN 10204 3.1 mill test certificates supplied for every batch.

Product Details

Product Description
Standard
GB/T 2965-2007, GB/T13810-2007, ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047, JIS etc
Grade
TA1-TA4, TA8-TA10, TA15-TA18, GR1-GR5, GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4V ELI
Diameter
1.0-300mm
Length
1000mm-12000mm
Technique
Hot Forging & Hot Rolling
Surface
Bright
Shape
Round, flat, square, hexagonal
Application
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.

Grade Contrast

China
America
Russia
Japan
TA1
Industrially Pure Titanium
GR1
BT1-00
TP270
TA2
GR2
BT1-0
TP340
TA3
GR3

TP450
TA4
GR4

TP550
TA8
Ti-0.05Pd
GR16


TA9
Ti-0.2Pd
GR7

TP340Pb
TA10
Ti-0.3Mo-0.8Ni
GR12


TA18
Ti-3Al-2.5V
GR9
0T4-1B
TAP3250
TB5
Ti-15V-3Al-3Gr-3Sn
Ti-15333


TC4
Ti-6Al-4V
GR5
BT6
TAP6400

Mechanical Properties

Grade
Status
Tensile Strength
Yield Strength
Elongation
Area of Reducation
Ksi
Mpa
Ksi
Mpa
%
≥
GR1
Annealed
35
240
25
170
24
30
GR2
50
345
40
275
20
30
GR3
65
450
55
380
18
30
GR4
80
550
70
483
15
25
GR5
130
895
120
828
10
25
TI-6AL-4VELI
125
860
115
795
10
25
GR6
120
828
115
483
15
25
GR7
50
345
40
275
20
30
GR9
90
620
70
483
15
25
GR11
35
240
25
170
24
30
GR12
70
483
50
345
18
25


Specifications

package
Packaging & Delivery Packaging Details 1. Wooden case 2. Available upon the client's request.
